SQ

The New Standard in Compact Digital Mixers

SQ delivers pristine 96kHz audio and class-leading 0.7ms latency with processing and FX add-ons from our flagship dLive system.

A New Standard in Compact Digital Mixing

48 channel, 96kHz digital mixers for live sound, AV and installation.

Powered by Allen & Heath’s revolutionary XCVI 96kHz FPGA engine, SQ is built for professionals in demanding live sound, recording and streaming applications. Delivering class-leading high-resolution audio with an ultra-low <0.7ms latency, SQ gives you unrivalled power and audio fidelity.



Features

All SQ Mixers Include

• 96kHz FPGA Processing
• 48 Input Channels
• DEEP Processing Ready
• 12 Stereo Mixes + LR
• 3 Stereo Matrix
• 8 Stereo FX Engines + Dedicated Returns
• 64×64 I/O Port for Audio Networking
• 32×32 USB Audio Interface
• Range of Remote Expanders

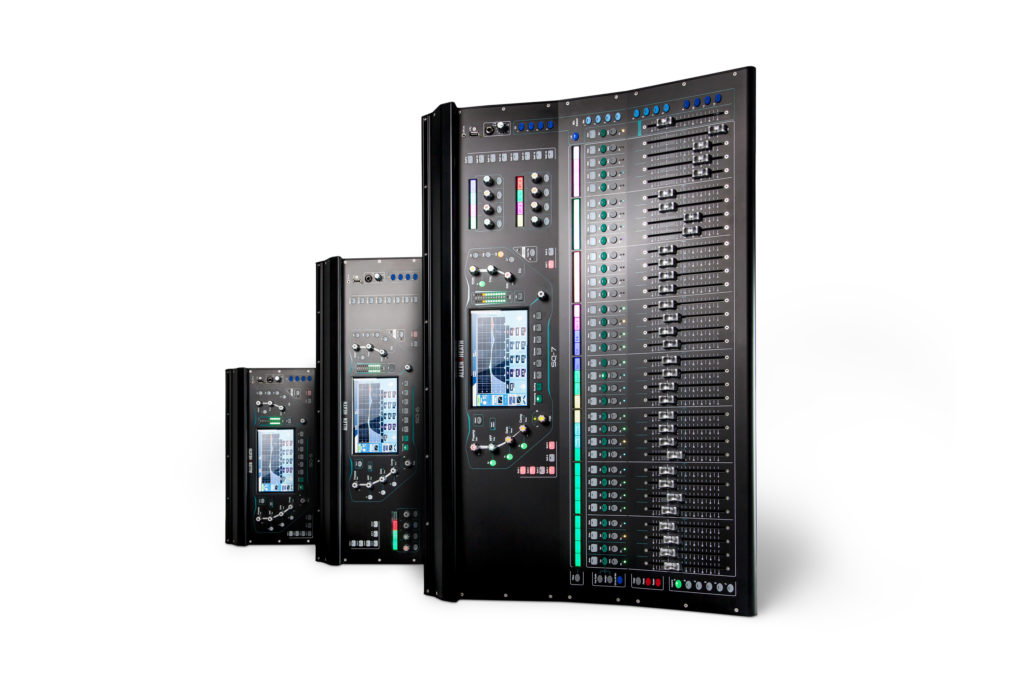

Three Console Sizes To Choose From

SQ-5

  • 16 Onboard Preamps
  • 12 Line Outputs
  • 17 Faders / 6 Layers
  • 8 Assignable SoftKeys

SQ-6

  • 24 Onboard Preamps
  • 14 Line Outputs
  • 25 Faders / 6 Layers
  • 16 Assignable SoftKeys
  • 4 Assignable Soft Rotaries

SQ-7

  • 32 Onboard Preamps
  • 16 Line Outputs
  • 33 Faders / 6 Layers
  • 16 Assignable SoftKeys
  • 8 Assignable Soft Rotaries

User Interface

Mixing Has Never Been Easier

Drag-and-Drop Layout

Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, allowing you to build a mixing environment that works for you.

At-a-Glance Metering

Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.

Intuitive Control

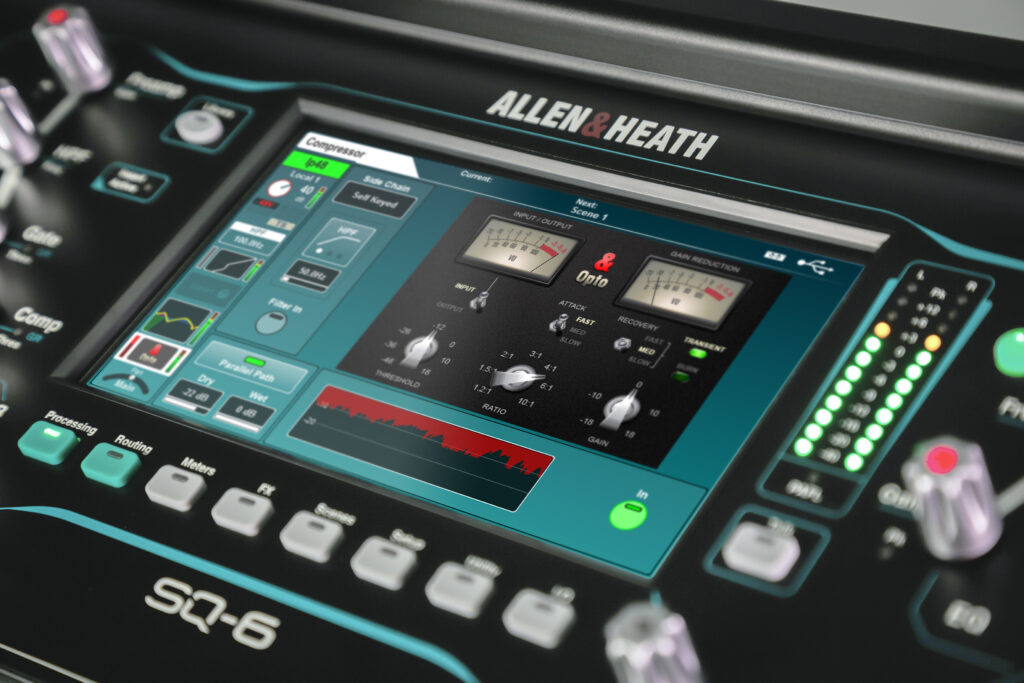

SQ’s dashboard is centred around a high-res 7” touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control.

Speed Up Your Workflow

All SQ mixers feature SoftKeys which can be assigned to commonly used functions. The SQ-6 and SQ-7 also provide assignable Soft Rotaries for even more custom control.

Processing & FX

All the Tools for the Perfect Mix

Processing

Powerful Processing

Every input has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients.

Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.

FX

World-Class FX

SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more.

Every engine has its own dedicated stereo return too, so you don’t need to use up any of your 48 input channels.

Integrated USB Interface

Record. Stream. Mix.

SQ’s built-in 32×32 96kHz audio interface enables easy multitrack recording, backing-track playback, livestreaming and virtual soundcheck.

The interface is class-compliant on Mac OS X making it truly plug ‘n play, with ASIO and WDM compatible drivers available for Windows computers.

You can even map the SQ’s faders, rotaries, channel keys and softkeys to control your favourite DAW using the Allen & Heath MIDI Control app.

Add-Ons

Take Your Mix to the Next Level

Proven on countless world-tours with international artists, DEEP Processing and RackExtra FX from our award-winning dLive digital mixing system is now available within your SQ.

SQ-Drive

Record to USB

The integrated SQ-Drive makes it quick and easy to capture and playback 16 channels (96kHz), 32 channels (48kHz), or a stereo recording of the performance direct to a USB key or drive.

No software setup, no soundcard driver issues and no extra laptop to bring to the performance.

AMM

Automatic Mic Mixer

SQ’s advanced automatic mic mixers (AMM’s) make it a natural choice for mixing conferences, panel talks and TV shows. They’re fully integrated in the mixer too, with no extra latency, so you don’t need to route the audio to an internal DSP rack or an external plugin system.

Two fully independent 24 channel AMM’s can be utilised for two zones or combined into a single 48 channel AMM for larger events.

Built to Last

Designed for the Pro

We know that the live environment can be tough on gear – so for SQ we devised our most punishing regime of testing and retesting yet.

From its 3-tier, all metal chassis to its extruded aluminium light bar, SQ has tremendous strength and rigidity underlying its good looks.

Networking and I/O

Open Up Your SQ

Everything I/O

All the Ins and Outs

Thanks to its SLink port, SQ can also be expanded up to a total of 48 mic inputs via the Everything I/O family of rack and stage box expanders making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems.

SQ MADI

MADI Card for SQ & AHM

More info Read more about SQ MADI

SQ Dante 64×64

Dante Card for SQ & AHM

More info Read more about SQ Dante 64×64

SQ Waves

Waves SoundGrid Card for SQ & AHM

More info Read more about SQ Waves

SQ SLink

SLink Card for SQ & AHM

More info Read more about SQ SLink

Features

96kHz FPGA Processing

48 Input Channels

DEEP Processing Ready

12 Stereo Mixes + LR

3 Stereo Matrix

8 Stereo FX Engines + Dedicated Returns

64×64 I/O Port for Audio Networking

32×32 USB Audio Interface

Range of Remote Expanders
